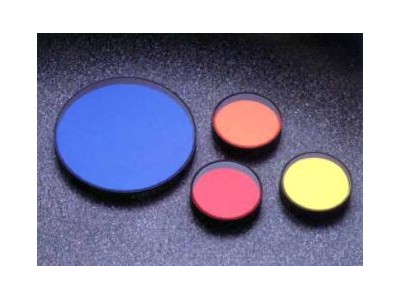

Andover带通滤光片
美国Andover厂家提供多种标准带通滤光片，几乎覆盖了现今所有常用的波段，并且提供多种标准尺寸供您选择，尺寸具体包括：12.5mm Ø, 25.0mm Ø and 50.0mm Ø。详细产品介绍如下。
一、bandpass filters(标准带通滤光片):
典型应用：
Spectral .Radiometry光谱辐射测定 Medical .Diagnostics诊断学 Chemical .Analysis 化学分析
产品规格：
选型表：
193.0-299.0 nm
300.0-399.0 nm
400.0-499.0 nm
一、bandpass filters(标准带通滤光片):
典型应用：
Spectral .Radiometry光谱辐射测定 Medical .Diagnostics诊断学 Chemical .Analysis 化学分析
产品规格：
| General Specifications | ||||||
| Diameter tolerance: | +0/-.25mm | |||||
| Usable aperture: | Size | Aperture | ||||
| . | 12.5mm Ø | 9.0mm Ø | ||||
| . | 25.0mm Ø | 21.0mm Ø | ||||
| . | 50.0mm Ø | 45.0mm Ø | ||||
| Surface quality: | 80-50 (Per MIL-O-13830) | |||||
| Out-of-band blocking: | 1 x 10-4 avg. from X-ray to FIR | |||||
| Specification temperature: | +23°C | |||||
| Maximum survival temperature range: |
|
|||||
| Humidity resistance: | Per MIL-STD-810C, Method 507 procedure 1, modified to 7 cycles for 25mm and 50mm filters, 5 cycles for 12.5mm filters. | |||||
选型表：
193.0-299.0 nm
| Element | W/L (nm) | B/W (nm) | # of Cav |
Filter Type | Tx (%) |
n* | Nom. Thick (mm) |
12.5mm Ø |
25mm Ø |
50mm Ø |
| 193.0 | 15 | - | 7 | 12 | -- | 3.5 | 193FS15-12.5 | 193FS15-25 | 193FS15-50 | |
| 200.0 | 10 | - | 7 | 12 | -- | 3.5 | 200FS10-12.5 | 200FS10-25 | 200FS10-50 | |
| Zn | 213.5 | 10 | - | 7 | 12 | -- | 3.5 | 214FS10-12.5 | 214FS10-25 | 214FS10-50 |
| Zn | 213.5 | 22 | - | 8 | 20 | -- | 3.5 | 214FS22-12.5 | 214FS22-25 | 214FS22-50 |
| -- | 220.0 | 10 | - | 7 | 12 | -- | 3.5 | 220FS10-12.5 | 220FS10-25 | 220FS10-50 |
| Cd | 228.0 | 10 | - | 7 | 15 | -- | 3.5 | 228FS10-12.5 | 228FS10-25 | 228FS10-50 |
| Cd | 228.0 | 25 | - | 8 | 20 | -- | 3.5 | 228FS25-12.5 | 228FS25-25 | 228FS25-50 |
| Ni | 232.0 | 10 | - | 7 | 15 | -- | 3.5 | 232FS10-12.5 | 232FS10-25 | 232FS10-50 |
| Co | 239.0 | 10 | - | 7 | 15 | -- | 3.5 | 239FS10-12.5 | 239FS10-25 | 239FS10-50 |
| Co | 239.0 | 25 | - | 8 | 20 | -- | 3.5 | 239FS25-12.5 | 239FS25-25 | 239FS25-50 |
| HeCd | 248.0 | 10 | - | 7 | 12 | -- | 3.5 | 248FS10-12.5 | 248FS10-25 | 248FS10-50 |
| - | 250.0 | 10 | - | 7 | 12 | -- | 3.5 | 250FS10-12.5 | 250FS10-25 | 250FS10-50 |
| Hg | 253.7 | 10 | - | 7 | 12 | -- | 3.5 | 254FS10-12.5 | 254FS10-25 | 254FS10-50 |
| Hg | 253.7 | 25 | - | 8 | 18 | -- | 3.5 | 254FS25-12.5 | 254FS25-25 | 254FS25-50 |
| Hg | 253.7 | 40 | - | 9 | 20 | -- | 3.5 | 254FS40-12.5 | 254FS40-25 | 254FS40-50 |
| - | 260.0 | 10 | - | 7 | 12 | -- | 3.5 | 260FS10-12.5 | 260FS10-25 | 260FS10-50 |
| Hg | 265.0 | 10 | - | 7 | 12 | -- | 3.5 | 265FS10-12.5 | 265FS10-25 | 265FS10-50 |
| Hg | 265.0 | 25 | - | 8 | 20 | -- | 3.5 | 265FS25-12.5 | 265FS25-25 | 265FS25-50 |
| - | 270.0 | 10 | - | 7 | 12 | -- | 3.5 | 270FS10-12.5 | 270FS10-25 | 270FS10-50 |
| Hg | 280.0 | 10 | - | 7 | 12 | -- | 3.5 | 280FS10-12.5 | 280FS10-25 | 280FS10-50 |
| Hg | 280.0 | 25 | - | 8 | 20 | -- | 3.5 | 280FS25-12.5 | 280FS25-25 | 280FS25-50 |
| Hg | 289.0 | 10 | - | 7 | 15 | -- | 3.5 | 289FS10-12.5 | 289FS10-25 | 289FS10-50 |
| Hg | 296.7 | 10 | - | 7 | 15 | -- | 3.5 | 297FS10-12.5 | 297FS10-25 | 297FS10-50 |
300.0-399.0 nm
| Element | W/L | B/W | # of Cav |
Filter Type | Tx (%) |
n* | Nom. Thick (mm) |
12.5mm Ø |
25mm Ø |
50mm Ø |
| - | 300.0 | 10 | - | 7 | 15 | -- | 3.5 | 300FS10-12.5 | 300FS10-25 | 300FS10-50 |
| - | 300.0 | 25 | - | 8 | 20 | -- | 3.5 | 300FS25-12.5 | 300FS25-25 | 300FS25-50 |
| - | 300.0 | 40 | - | 9 | 20 | -- | 3.5 | 300FS40-12.5 | 300FS40-25 | 300FS40-50 |
| Zn | 307.1 | 10 | - | 7 | 15 | -- | 3.5 | 307FS10-12.5 | 307FS10-25 | 307FS10-50 |
| Zn | 307.1 | 25 | - | 8 | 20 | -- | 3.5 | 307FS25-12.5 | 307FS25-25 | 307FS25-50 |
| - | 310.0 | 10 | - | 7 | 15 | -- | 3.5 | 310FS10-12.5 | 310FS10-25 | 310FS10-50 |
| Hg | 313.0 | 10 | - | 7 | 15 | -- | 3.5 | 313FS10-12.5 | 313FS10-25 | 313FS10-50 |
| Hg | 313.0 | 25 | - | 8 | 20 | -- | 3.5 | 313FS25-12.5 | 313FS25-25 | 313FS25-50 |
| - | 320.0 | 10 | 3 | 3 | 25 | 1.45 | 6.9 | 320FS10-12.5 | 320FS10-25 | 320FS10-50 |
| Cd | 326.1 | 3 | 2 | 2 | 15 | 1.45 | 6.9 | 326FS03-12.5 | 326FS03-25 | 326FS03-50 |
| Cd | 326.1 | 10 | 3 | 3 | 25 | 1.45 | 6.9 | 326FS10-12.5 | 326FS10-25 | 326FS10-50 |
| Cd | 326.1 | 25 | 3 | 3 | 25 | 1.45 | 6.4 | 326FS25-12.5 | 326FS25-25 | 326FS25-50 |
| - | 330.0 | 10 | 3 | 3 | 25 | 1.45 | 6.9 | 330FS10-12.5 | 330FS10-25 | 330FS10-50 |
| Hg | 334.0 | 10 | 3 | 3 | 25 | 1.45 | 6.9 | 334FS10-12.5 | 334FS10-25 | 334FS10-50 |
| N laser | 337.1 | 3 | 2 | 2 | 20 | 1.45 | 6.9 | 337FS03-12.5 | 337FS03-25 | 337FS03-50 |
| N laser | 337.1 | 10 | 3 | 3 | 25 | 1.45 | 6.9 | 337FS10-12.5 | 337FS10-25 | 337FS10-50 |
| Biomedical | 340.0 | 8 | 3 | 3 | *35 | 1.45 | 6.9 | 340FS08-12.5 | 340FS08-25 | 340FS08-50 |
| Biomedical | 340.0 | 10 | 3 | 3 | 25 | 1.45 | 6.9 | 340FS10-12.5 | 340FS10-25 | 340FS10-50 |
| Biomedical | 340.0 | 25 | 3 | 3 | 25 | 1.45 | 5.9 | 340FS25-12.5 | 340FS25-25 | 340FS25-50 |
| - | 350.0 | 10 | 3 | 3 | 25 | 1.45 | 6.9 | 350FS10-12.5 | 350FS10-25 | 350FS10-50 |
| - | 350.0 | 25 | 3 | 3 | 25 | 1.45 | 5.9 | 350FS25-12.5 | 350FS25-25 | 350FS25-50 |
| - | 350.0 | 40 | 3 | 3 | 25 | 1.45 | 4.9 | 350FS40-12.5 | 350FS40-25 | 350FS40-50 |
| Nd/YAG laser |
355.0 | 10 | 3 | 3 | 25 | 1.45 | 5.4 | 355FS10-12.5 | 355FS10-25 | 355FS10-50 |
| - | 360.0 | 10 | 3 | 3 | 25 | 1.45 | 5.4 | 360FS10-12.5 | 360FS10-25 | 360FS10-50 |
| Hg | 365.0 | 5 | 2 | 2 | 20 | 1.45 | 5.4 | 365FS05-12.5 | 365FS05-25 | 365FS05-50 |
| Hg | 365.0 | 10 | 3 | 3 | 25 | 1.45 | 5.4 | 365FS10-12.5 | 365FS10-25 | 365FS10-50 |
| Hg | 365.0 | 25 | 3 | 3 | 25 | 1.45 | 5.4 | 365FS25-12.5 | 365FS25-25 | 365FS25-50 |
| - | 370.0 | 10 | 3 | 3 | 25 | 1.45 | 5.4 | 370FS10-12.5 | 370FS10-25 | 370FS10-50 |
| - | 380.0 | 10 | 3 | 3 | 25 | 1.45 | 5.9 | 380FS10-12.5 | 380FS10-25 | 380FS10-50 |
| - | 390.0 | 10 | 3 | 3 | 40 | 1.45 | 5.9 | 390FS10-12.5 | 390FS10-25 | 390FS10-50 |
400.0-499.0 nm
| Element | W/L | B/W | # of Cav |
Filter Type |
Tx (%) |
n* | Thick (mm) |
12.5mm Ø |
25mm Ø |
50mm Ø |
| - | 400.0+3/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 400FS10-12.5 | 400FS10-25 | 400FS10-50 |
| - | 400.0 ±2 | 20 ±4 | 3 | 3 | 45 | 1.45 | 7.0 | 400FS20-12.5 | 400FS20-25 | 400FS20-50 |
| - | 400.0+10/-0 | 40 ±8 | 3 | 3 | 45 | 1.45 | 7.0 | 400FS40-12.5 | 400FS40-25 | 400FS40-50 |
| - | 400.0+25/-0 | 70 ±16 | - | 10 | 60 | ------ | 7.0 | 400FS70-12.5 | 400FS70-25 | 400FS70-50 |
| Hg | 404.7+1/-0 | 5 ±1 | 2 | 2 | 35 | 1.45 | 7.0 | 405FS05-12.5 | 405FS05-25 | 405FS05-50 |
| Hg | 404.7+2/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 405FS10-12.5 | 405FS10-25 | 405FS10-50 |
| - | 410.0+3/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 410FS10-12.5 | 410FS10-25 | 410FS10-50 |
| - | 415.0+2/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 415FS10-12.5 | 415FS10-25 | 415FS10-50 |
| - | 420.0+3/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 420FS10-12.5 | 420FS10-25 | 420FS10-50 |
| - | 430.0+3/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 430FS10-12.5 | 430FS10-25 | 430FS10-50 |
| Hg | 435.8+1/-0 | 5 ±1 | 2 | 2 | 45 | 1.45 | 7.0 | 436FS05-12.5 | 436FS05-25 | 436FS05-50 |
| Hg | 435.8+2/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 436FS10-12.5 | 436FS10-25 | 436FS10-50 |
| - | 440.0+3/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 440FS10-12.5 | 440FS10-25 | 440FS10-50 |
| He/Cd laser | 441.6+.2/-0 | 1 ±.2 | 2 | 2 | 35 | 1.45 | 8.5 | 442FS02-12.5 | 442FS02-25 | 442FS02-50 |
| He/Cd laser | 441.6+.5/-0 | 3 ±.5 | 2 | 2 | 40 | 1.45 | 8.5 | 442FS03-12.5 | 442FS03-25 | 442FS03-50 |
| He/Cd laser | 441.6+2/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 442FS10-12.5 | 442FS10-25 | 442FS10-50 |
| - | 450.0+3/-0 | 10 ±2 | 3 | 3 | 45 | 1.45 | 7.0 | 450FS10-12.5 | 450FS10-25 | 450FS10-50 |
| - | 450.0 ±2 | 20 ±4 | 3 | 3 | 55 | 1.45 | 7.0 | 450FS20-12.5 | 450FS20-25 | 450FS20-50 |
| - | 450.0+10/-0 | 40 ±8 | 3 | 3 | 55 | 1.45 | 7.0 | 450FS40-12.5 | 450FS40-25 | 450FS40-50 |
| - | 450.0+25/-0 | 80 ±16 | - | 9 | 65 | ------ | 7.0 | 450FS80-12.5 | 450FS80-25 | 450FS80-50 |
| Cs | 455.5+2/-0 | 10 ±2 | 3 | 3 | 50 | 1.45 | 7.0 | 456FS10-12.5 | 456FS10-25 | 456FS10-50 |
| Ar/Ion laser | 457.9+.2/-0 | 1 ±.2 | 2 | 2 | 40 | 1.45 | 8.5 | 458FS02-12.5 | 458FS02-25 | 458FS02-50 |
| Ar/Ion laser | 457.9+.5/-0 | 3 ±.5 | 2 | 2 | 45 | 1.45 | 8.5 | 458FS03-12.5 | 458FS03-25 | 458FS03-50 |
| Ar/Ion laser | 457.9+2/-0 | 10 ±2 | 3 | 3 | 50 | 1.45 | 7.0 | 458FS10-12.5 | 458FS10-25 | 458FS10-50 |
| - | 460.0+3/-0 | 10 ±2 | 3 | 3 | 50 | 1.45 | 7.0 | 460FS10-12.5 | 460FS10-25 | 460FS10-50 |
| - | 470.0+3/-0 | 10 ±2 | 3 | 3 | 50 | 2.05 | 7.0 | 470FS10-12.5 | 470FS10-25 | 470FS10-50 |
| - | 480.0+3/-0 | 10 ±2 | 3 | 3 | 50 | 2.05 | 7.0 | 480FS10-12.5 | 480FS10-25 | 480FS10-50 |
| H | 486.1+2/-0 | 10 ±2 | 3 | 3 | 50 | 2.05 | 7.0 | 486FS10-12.5 | 486FS10-25 | 486FS10-50 |
| Ar/Ion laser | 488.0+.2/-0 | 1 ±.2 | 2 | 2 | 45 | 2.05 | 8.5 | 488FS02-12.5 | 488FS02-25 | 488FS02-50 |
| Ar/Ion laser | 488.0+.5/-0 | 3 ±.5 | 2 | 2 | 50 | 2.05 | 8.5 | 488FS03-12.5 | 488FS03-25 |
